The Challenge: Advent of Code Meets Industrial Automation
What happens when you combine Advent of Code with industrial control systems? Ladder logic solutions running on actual PLCs.
This year, I solved Advent of Code 2025 puzzles using ladder logic on an Allen-Bradley Micro870 PLC, with a FactoryTalk Optix HMI for visualization.
Github Repo with Code: https://github.com/ladderlogix/Advent-of-Code-2025
Hardware Setup
| Component | Model |
|---|---|
| PLC | Allen-Bradley Micro870 (2080-L70E-24QBBN) |
| HMI | FactoryTalk Optix |
| Communication | Ethernet/IP |
Day 1: Secret Entrance
The Problem
You arrive at the secret entrance to the North Pole base, but the password has changed. A safe with a dial (numbers 0-99) holds the answer. Your puzzle input contains rotation instructions like L68 (left 68 clicks) or R48 (right 48 clicks).
The dial starts at 50 and wraps around (left from 0 goes to 99, right from 99 goes to 0).
Part 1: Count how many times the dial ends on position 0 after a rotation.
Part 2: Count how many times the dial passes through or lands on position 0 during ALL rotations.
Part 1 Solution
The algorithm processes 4,146 rotation instructions, tracking position on a circular 0-99 dial.

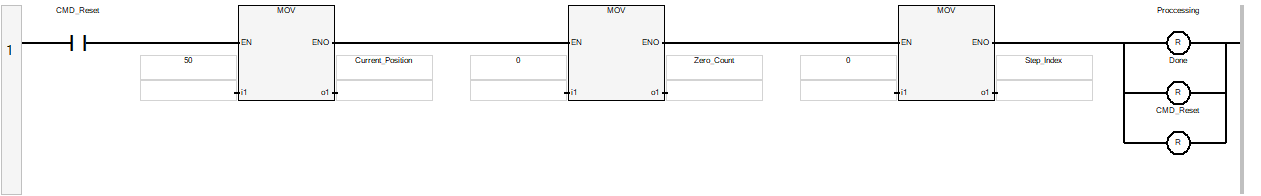

Rung 0 - Reset
Initializes all counters and position to starting state.

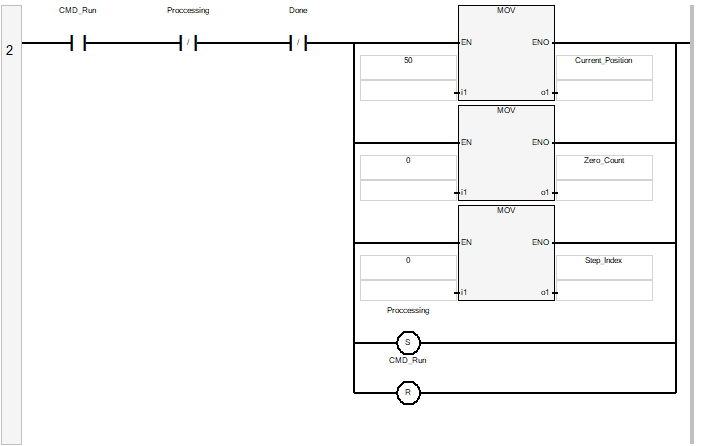

Rung 1 - Start Processing
Begins the scan cycle for processing instructions.

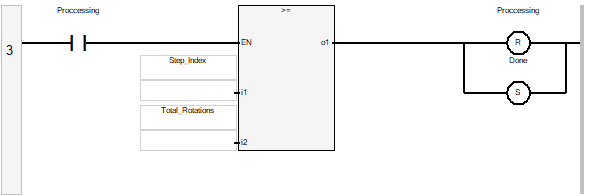

Rung 2 - Check If Complete
Compares current instruction index against total count (4,146).

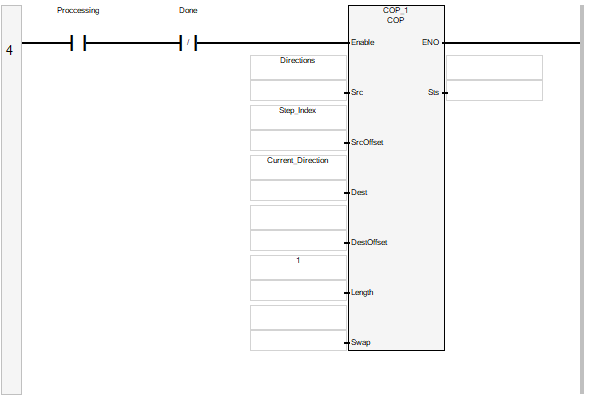

Rung 3 - Get Direction From Array
Reads the direction value (L or R) from the instruction array.
Rung 4 - Get Distance From Array
Reads the rotation distance value from the instruction array.

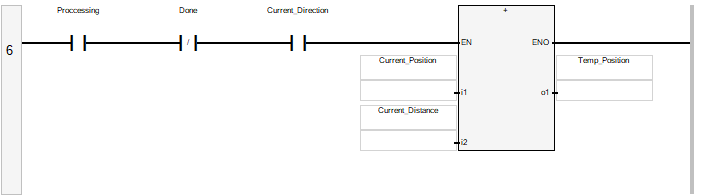

Rung 5 - Add (Direction = Right)
For right rotations, adds the distance to current position.

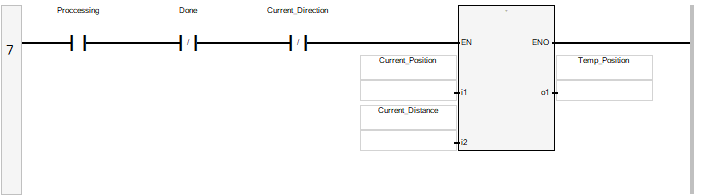

Rung 6 - Subtract (Direction = Left)
For left rotations, subtracts the distance from current position.

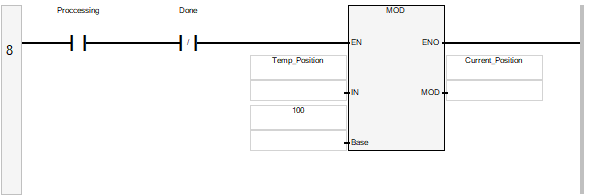

Rung 7 - Modulo Wraparound
Applies modulo 100 to handle the circular dial wraparound.

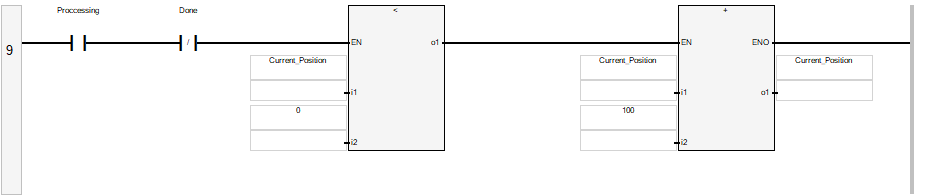

Rung 8 - Handle Negative Values
Converts negative results from left rotations to positive equivalent.

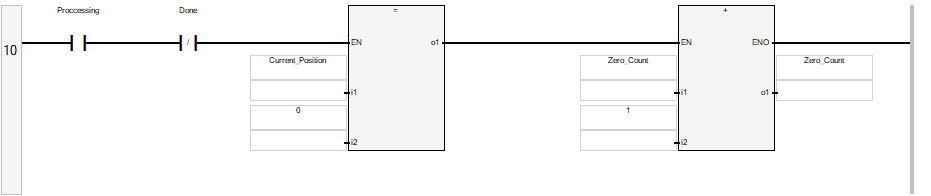

Rung 9 - Count Zeros
Increments the zero counter if position equals 0.

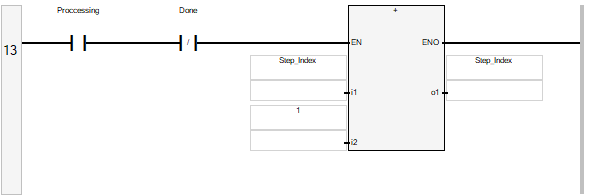

Rung 10 - Advance Step
Moves to the next instruction and loops.

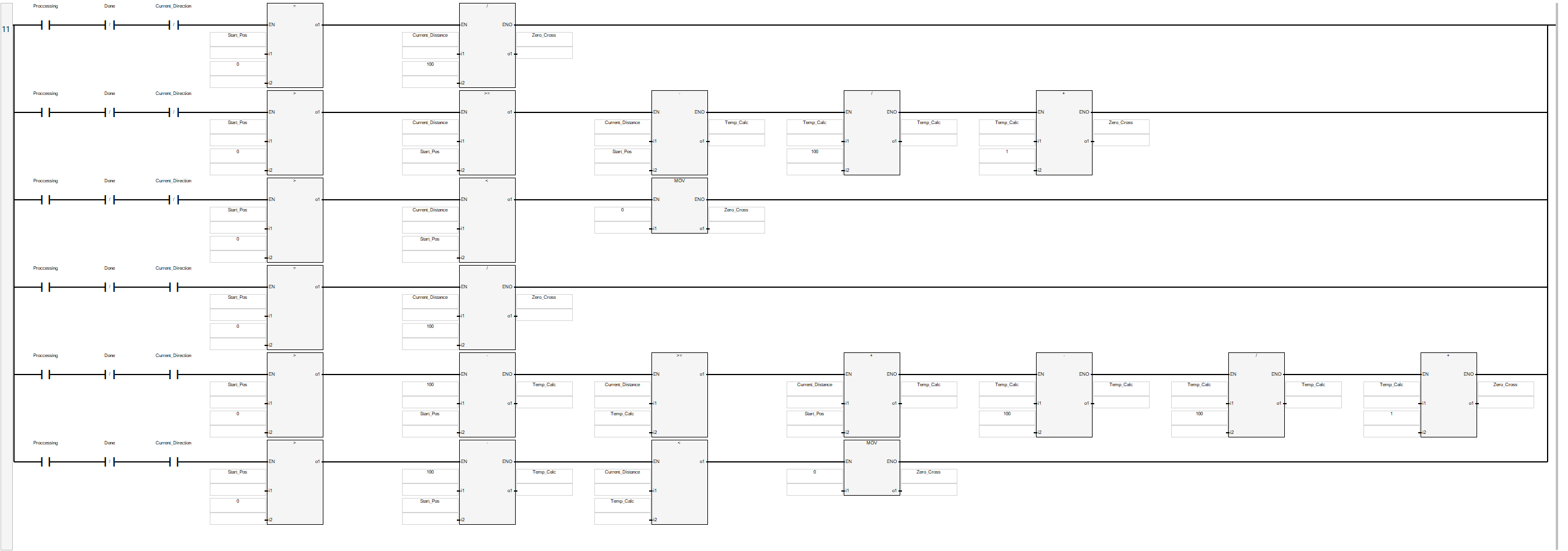

Part 2 Solution
Part 2 requires counting every time the dial crosses position 0, not just when it lands there. This adds significant complexity with 6 different cases to handle for zero crossings during rotation.
Stay tuned for more days of Advent of Code solved with ladder logic!
